Vertical Shaking Incubator ( Touched screen )

2022-04-23 19:26:37
Vertical Shaking Incubator ( Touched screen )

Product Features



1.The vertical body with 2 movable racks saves space, while the double-door design provides flexibility

2.The frame is made of excellent coated steel, bright stainless steel chamber with round corners is easy to clean and anti-corrosion

3.Adopts whole LED touching screen, setting data and measured data observe intuitively.

It records and stores data to avoid loss caused by power failure.

It supports 5 program modes with 150 programming segments, USB interface, printer, scheduled power-on and optional 485 interface.

4.Insulated tempering glass observation window provides good view of whole objects without opening door.

  The running will stop when the door open, it's more safe and convenience for operation.

5.With UV sterilization.

6. Using the efficient fluorine-free compressor and servo motor to guarantee stable and precise operation.

7.silence fan and forced convection offer constant temperature excellently

8.Equipped with over temperature alarm, fail power under abnormal conditions  automatically

 Overcurrent protection keep motor operating safely, and extend the service life.

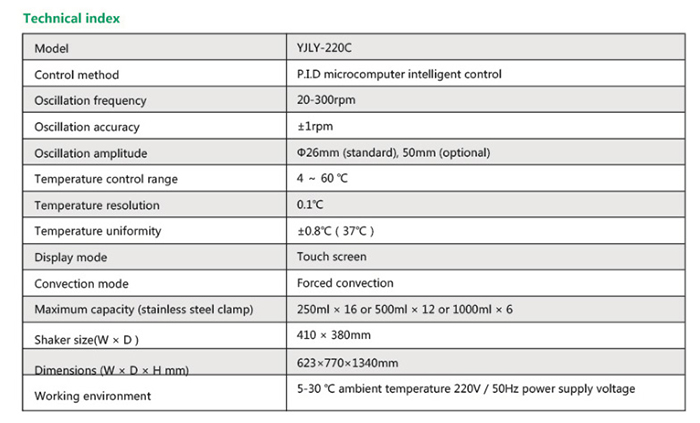

Technical data


Model

YJLY-220C

YJLY-220

display

PID touched screen

PID LCD screen

shaking speed

1-300rpm

shaking accuracy

±1rpm

shaking range

ф26m(standard),ф50mm(option),26mm reciprocation (option)

temp.range

4-60

temp.accuracy

0.1

temp.uniformity

±0.8(37)

air circulation

forced convection

door type

1-leaf door

1-leaf door

stainless clamp

250mlx25pcs or
500mlx16pcs or
1000mlx9pcs

250mlx25pcs or
500mlx16pcs or
1000mlx9pcs

shaking shelf(mm)

488x484

488x484

inner chamber(mm)

570x560x634

570x560x634

exterior size(mm)

623x770x1340

623x770x1340

work condition

5~30,220V/50Hz
